Galvanized Sheet Silo
Product Features
275g/㎡ double-sided high zinc layer, corrosion resistant, and long service life;
The translational flip cover structure ensures that the feed cart can freely feed at 360 degrees;
The ring and lower cone plate are equipped with observation holes for easy viewing of the feed level in the silo;
Anti slip design for climbing stairs, safer.
Product Application

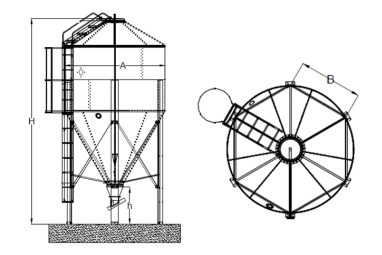

Technical Parameter
Tonnage（0.65t/m³） |
Volume（m³） |
legs |
Layers of ring sheet |
H |
h |
A |
B |
2.9 |
4.6 |
4 |
1 |
4060 |
1000 |
1834 |
1296 |
4.4 |
6.9 |
4 |
2 |
4940 |
1000 |
1834 |
1296 |
6.0 |
9.2 |
4 |
3 |
5820 |
1000 |
1834 |
1296 |
7.4 |
11.4 |
6 |
1 |
4610 |
1000 |
2750 |
1375 |
10.8 |
16.6 |
6 |
2 |
5490 |
1000 |
2750 |
1375 |
14.1 |
21.8 |
6 |
3 |
6380 |
1000 |
2750 |
1375 |
17.5 |
27 |
6 |
4 |
7320 |
1000 |
2750 |
1375 |
16.2 |
24.5 |
8 |
1 |
5790 |
1000 |
3668 |
1403 |
22.2 |
33.8 |
8 |
2 |
6670 |
1000 |
3668 |
1403 |
28.3 |
43.1 |
8 |
3 |
7550 |
1000 |
3668 |
1403 |
34.3 |
52.4 |
8 |
4 |
8430 |
1000 |
3668 |
1403 |
Product Composition
