Preventing Epidemics: Starting with "Breathing" | Use and Maintenance of Air Filtration Systems in Pig Farms
Return to List
The air filtration module of the pig farm is a kind of air purification system specially designed for pig farms. It aims to improve the air quality in the pig houses through efficient filtration technology, reduce the risk of virus, bacteria and dust transmission, thereby ensuring the healthy growth of pigs and increasing the farming efficiency.
Working principle
◆ Air intake: External air passes through the primary filter for preliminary filtration of large particles.
◆Precise filtration: The air passes through sub-efficient or efficient filters to remove fine particles, bacteria and viruses.
◆Clean air delivery: The filtered clean air is transported through a positive pressure fan and ventilation ducts, and evenly distributed throughout the pigsty.
◆Positive pressure environment: A positive pressure environment is created within the pigsty to prevent unfiltered external air from entering and to reduce the risk of virus transmission.
Core Function
◆ Virus Protection: The primary and sub-primary filters can filter over 99.95% of the particles in the air. The virus prevention level can reach L6 grade, effectively reducing the chance of pigs being infected with viruses.
◆ Dust Control: Reduce the dust concentration in the pigsty, improve air quality, and lower the incidence of respiratory diseases.
◆Mosquito prevention: The protective net effectively blocks mosquitoes from entering the pigsty, reducing the transmission of diseases.
◆Timely drainage: Through the design of drainage holes, rainwater is prevented from accumulating, thus avoiding the growth of bacteria.
Air filtration system
G4 primary plate-type filter
+
F9 ultra-high efficiency filter
The virus prevention level can reach level L6.
Technical Features
◆A more reasonable design of the rain cover reduces the impact of rain and snow on the air filtration and intake.

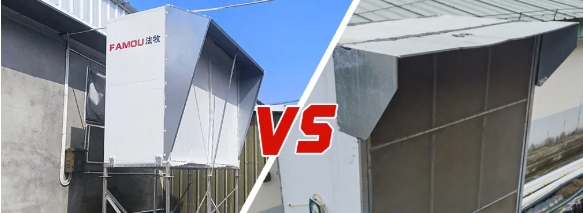

▲ Our company's rain cover ▲ Some products from other companies
◆High-efficiency sealing: The box body is sealed with glue strips and neutral silicone, ensuring overall sealing performance and preventing air leakage.
▲ Fluorescent powder test for air tightness
◆Durable materials: Galvanized sheet rain covers and corrosion-resistant frames, as well as anti-corrosion and durable materials, are suitable for the harsh environment of pig farms.
▲ Our company's anti-corrosion panels ▲ Some products from other companies
◆ Intelligent Control: For the renovation of individual old factories, manual control or connection to the existing environmental control system can be adopted for operation; an intelligent control system can also be optionally equipped to monitor parameters such as air quality and the operating status of the fans in real time.
Maintenance and upkeep
Cleaning the protective net: Regularly remove and clean the protective net to prevent blockages.
Drainage system cleaning: Regularly clean the drainage holes to prevent blockages and water accumulation.
Regularly replace filters: Based on usage conditions, replace the primary and high-efficiency filters regularly to ensure the filtering effect.
It is recommended to replace the filter when the final resistance is 2 to 4 times that of the initial resistance.
② The replacement cycle for the primary filter is 6 to 7 months, and the replacement cycle for the sub-high efficiency filter is 24 to 36 months.
When replacing the filter, please be careful: Do not touch the filter element; when handling and installing the filter, only grasp the edge part of the filter frame, and for sub-high efficiency filters, only grasp the frame with the guard plates at the top and bottom, to avoid touching the filter element.
