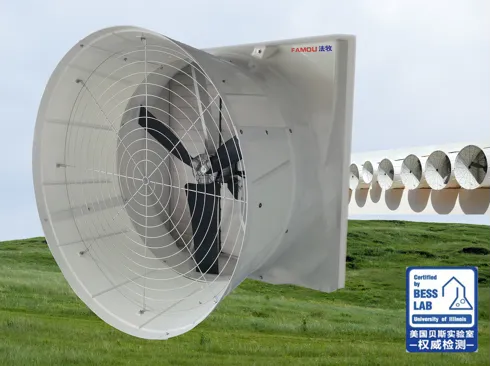

Technical Analysis of Famou Fiberglass Direct-Drive Fan

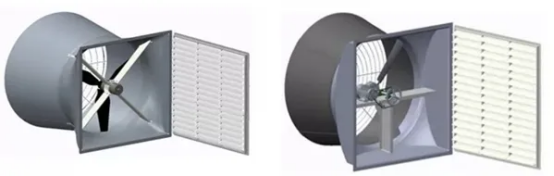

1. Housing Material and Molding Process: The fan adopts a fiberglass housing manufactured with an integral compression molding process to form an integrated structure. The application of fluid simulation design minimizes wind resistance while ensuring housing strength. This design concept not only improves energy efficiency but also enables the fan to adapt to various complex working conditions due to the natural corrosion resistance of fiberglass.

2. Stall Control of the Blade System: Split composite blades are one of Famou’s core technical highlights. The stall-limiting design effectively prevents motor overload, which is critical in actual operation. Composite materials ensure high strength while achieving lightweight construction. Combined with hydrodynamic optimization, the fan delivers larger air volume while maintaining stable and reliable operation.

3. Simple and Reliable Transmission Structure: The direct-drive structure eliminates intermediate links in traditional belt drives, featuring high structural strength and stability. The core advantage of this design philosophy is "simplicity leads to reliability" – fewer components directly reduce failure rates and enable maintenance-free operation.

4. Motor and Bearing Configuration: High-quality high-efficiency motors paired with imported brand bearings ensure high transmission efficiency and long-term service life stability. The T-shaped louver adopts an airfoil design with smooth transitions across all blade sections, reducing wind resistance by approximately 5% compared with traditional structures, resulting in considerable energy efficiency improvements during long-term operation. The high-strength hot-dip galvanized protective net provides excellent corrosion resistance, suitable for high-humidity environments and those containing corrosive gases.

II. Performance AdvantagesTraditional belt-driven fans inevitably suffer from performance degradation during operation due to multiple factors such as belt elastic fatigue, tensioner wear, and increased bearing housing clearances. Famou direct-drive technology fundamentally solves this industry challenge, with advantages in five core dimensions.

1. Qualitative Leap in Transmission Efficiency: The direct-drive design removes intermediate transmission components such as pulleys, tensioners, belts and bearing housings, realizing a direct connection between the motor and blades. This change directly brings a significant improvement in transmission efficiency – energy loss during mechanical transmission is minimized.

2. Innovation in Maintenance Mode: For large-scale breeding and industrial scenarios, fan maintenance costs are often a non-negligible expense. Direct-drive fans require no bearing lubrication or belt replacement, fundamentally changing the fan maintenance mode and achieving true "maintenance-free" operation.

3. Essential Improvement in Reliability: The reliability of a mechanical system is inversely proportional to its complexity. Famou’s direct-drive design minimizes the probability of failure by reducing the number of components. Furthermore, the centrally mounted motor optimizes ventilation area and reduces system resistance.

4. Long-Term Guarantee of Performance Stability: Belt-driven systems tend to degrade in efficiency – as service time increases, belt elongation and reduced tension lead to lower transmission efficiency, resulting in both reduced air volume and higher energy consumption. The direct-drive design eliminates such performance degradation, maintaining stable output throughout the fan’s service life.

1. Matching Blade and Motor Speed: The direct-drive design eliminates the deceleration mechanism, with blades directly connected to the motor rotor, meaning blade design must precisely match motor speed. Through extensive hydrodynamic simulations and actual machine tests, Famou has identified the optimal aerodynamic performance matching point.

2. Blade Centrifugal Force and Bearing Load: Centrifugal force generated by high-speed rotating blades imposes higher requirements on motor bearings. Famou selects high-load-capacity imported SKF bearings, with specialized service life design and verification for this application scenario.




1. STAR software simulation for systematic optimization and analysis of blade air volume, stress, noise and other structural parameters.

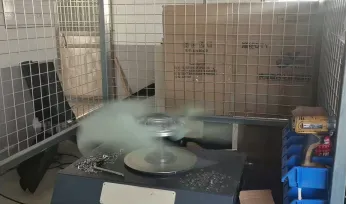

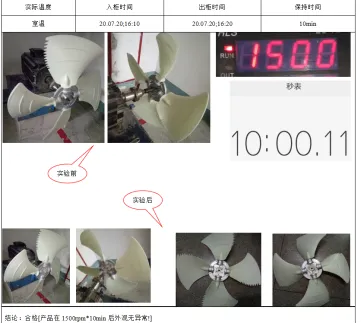

2. Ultra-high-speed destructive testing to ensure stability and reliability under normal working conditions.




3. Dynamic balance testing to guarantee fan quality and service life.




V. Authoritative Evaluation

The technical value of Famou fiberglass direct-drive fans does not stem from innovation in a single component, but from system-level integrated optimization – from material selection and process design to transmission structure and detailed quality control, improvements in every link collectively form the product’s core competitiveness. In an era where ventilation efficiency directly affects breeding safety and production costs, Famou redefines standards for large-space ventilation through technical strength.
