Professional Hot-Dip Galvanized Component Manufacturer
Return to ListQingdao Famou Machinery Co., Ltd. is a professional manufacturer specializing in hot-dip galvanizing processing and the production of galvanized components for animal husbandry, with nearly ten years of experience in the industry. The company has large-scale automated zinc pots and a full-process CNC production system, has passed the ISO 9001 quality management system certification, and the zinc layer quality of its products complies with the ISO 1461:2022 international standard.

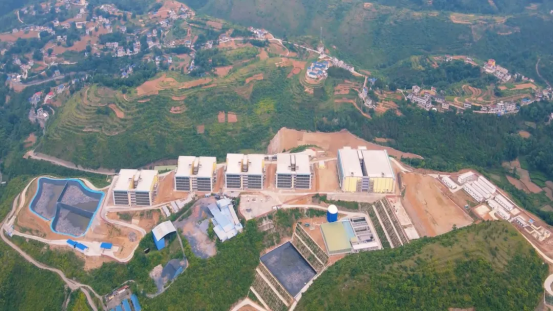

As a supporting supplier for leading domestic breeding groups such as New Hope, Lihua Co., Ltd., and Yihao Food, we have served many large-scale benchmark projects including the 6,000-sow farm in Ankang, Shaanxi, the 1,600-head core breeding farm in Feidong, and the 3,000-head great-grandparent breeding farm in Guangzhou. At the same time, the products are exported to more than ten countries including the Philippines, Argentina, and Cameroon. We hold complete export qualifications and can provide a full set of customs clearance documents and customized trade solutions.

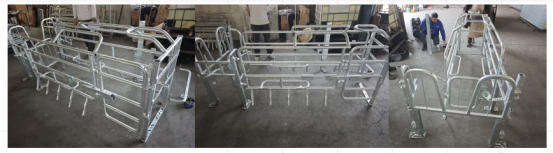

- Sow Gestation Crates (Round Pipe)Surface Treatment: Overall hot-dip galvanizing, zinc layer ≥80μmMain Material: Outer frame 3/4-inch pipe (2.3mm), inner lining 1/2-inch pipe (2.3mm)Structural Design: Dense front and sparse rear, vertical rail spacing 140–160mm, horizontal rail spacing 170–200mmBottom Height: 170mm from the groundDoor Structure: Front and rear double doors, touch switch, rear door adapted for artificial inseminationFeeding System: Equipped with integral trough, Φ60 feeding pipe welding, bottom elbowDimensions: Customized according to the plan, crate height 1100mm
-

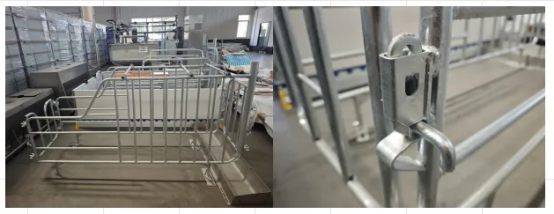

Farrowing Crates (Round Pipe)Surface Treatment: Overall hot-dip galvanizing, zinc layer ≥80μmStandard Dimensions: Overall 2.4×1.8m, sow crate 2.2×0.6×1.1mMain Material: Sow crate 1-inch pipe (2.3mm), back 1/2-inch pipe (2.0mm)Door Structure: Front and rear doors can be opened bidirectionally or disassembled, rear door length adjustableSupport Structure: Front bracket 1-inch pipe, door frame 3/4-inch/1-inch pipe, inner support 12mm round steelFunctional Configuration: Flip-down anti-crushing bar, piglet limiting bar/isolation rake
-

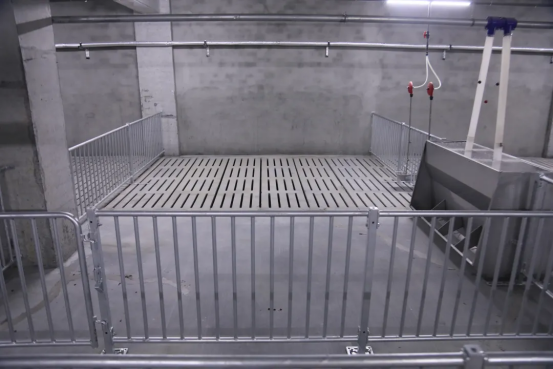

Finishing PensSurface Treatment: Overall hot-dip galvanizing, zinc layer ≥80μmMain Material: Outer frame 1-inch pipe (2.3mm), inner lining 1/2-inch pipe (2.0mm)Door Structure: Touch lock switchDimensions: Customized according to the plan
-
Integrated Nursery-Finishing Pens (Round Steel)Surface Treatment: Overall hot-dip galvanizing, zinc layer ≥80μmMain Structure: Top 30-angle steel, bottom frame 18mm round steel, grid 12mm round steelDoor Structure: Touch lock switchDimensions: Customized according to the plan
-
Custom Galvanized Parts
Process Adaptation for Global Working Conditions: We deeply understand the differentiated needs of breeding scenarios in different regions. We can adjust the spacing of gestation crates in accordance with EU animal welfare standards, optimize the ventilation structure design for customers in tropical climates, and provide modular quick-installation solutions for small and medium-sized farms.
-
Dual Guarantee of Material and Process: All connecting fasteners are made of 304 stainless steel, fundamentally eliminating the risk of electrochemical corrosion. The modular design increases on-site installation efficiency by 40%, supports OEM/ODM customization services, and can produce a full range of galvanized components for animal husbandry according to customer drawings.

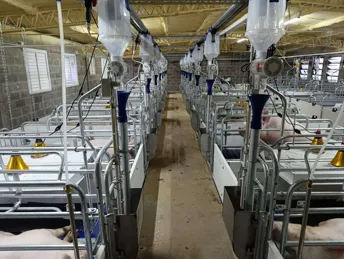

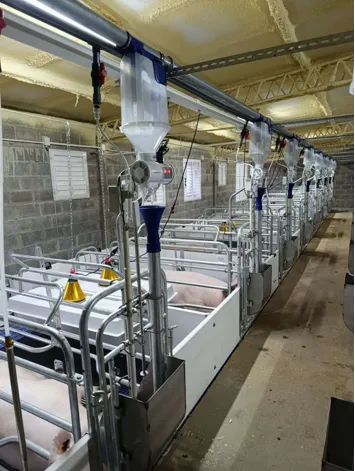

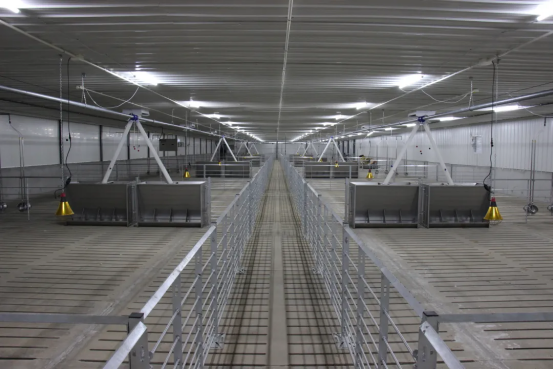

(Installation photos of the Argentina project)
