Introduction to Qingdao Famou Waste Gas Treatment System – Hypochlorous Acid Atomization Deodorization System
Return to ListⅠ、Working Principle
Working Principle: Using water as the main raw material, adding an appropriate amount of salt or dilute hydrochloric acid, a slightly acidic solution is generated through electrolysis, which exists in the form of hypochlorous acid molecules (HClO) with strong bactericidal effect. It is safe, convenient and environmentally friendly. After use, it is reduced to ordinary water without residue and pollution, being an efficient green and environmentally friendly disinfectant.Source suppression: Kill odor-producing bacteria such as Escherichia coli, reduce the decomposition of organic matter, and reduce odor generation from the source.Oxidative decomposition: Hypochlorous acid is a strong oxidant, which can oxidize and destroy odor-causing groups such as sulfur bonds and amino groups in odor molecules.Reaction with hydrogen sulfide (H₂S): Generate sulfates to completely eliminate sulfur odor.Reaction with ammonia (NH₃): Generate nitrogen, water or chloramines to neutralize alkaline malodor.Reaction with organic sulfur and amines: Decompose into small molecular inorganic substances to cut off the source of peculiar smell.Neutralization reaction: The slightly acidic environment (pH 5.0–6.5) can directly neutralize alkaline odor components such as ammonia to quickly reduce irritation.
Ⅱ、Own Advantages
High-efficiency reaction: Strong oxidation capacity, fast reaction speed with pollutants, suitable for continuous waste gas treatment;
Mild conditions: No high temperature, high pressure or catalyst required, operable at normal temperature and pressure with low equipment cost;
Wide applicability: Comprehensive treatment effect on low-concentration, multi-component mixed waste gas (such as mixed gas containing sulfur, ammonia and peculiar smell at the same time);
Few by-products: The main by-products are H₂O, N₂, HCL, which are easy to treat.

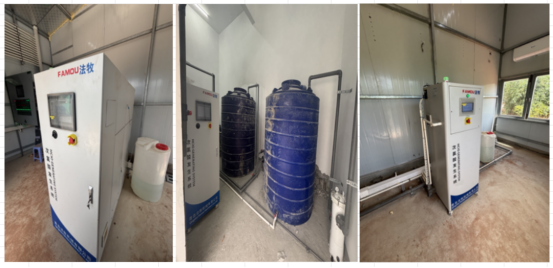

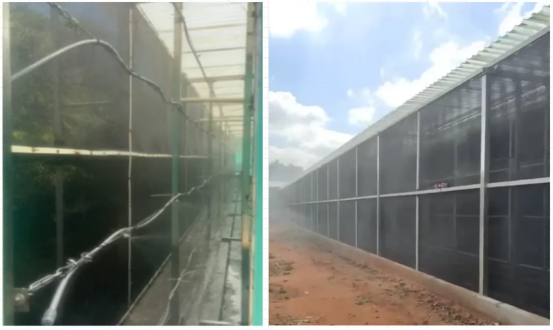

Ⅲ、Project Construction Display
